مع 23+ سنة من الخبرة في الخدمة ، المورد العالمي لآلات معالجة الزجاج المهنية.


آلة حفر الزجاج العمودية1 1
آلة حفر الزجاج العمودية1 2
آلة حفر الزجاج العمودية1 1
آلة حفر الزجاج العمودية1 2

آلة حفر الزجاج العمودية1

MAIN SPECIFICATION:

أقطار الحفر: 5~140 ملم

سمك الزجاج المعالج: 3~25 ملم

قوة: كيلو وات4

وزن: كجم1000

منطقة الاحتلال: 2500 × 2000 × 2200 مم (الطول × العرض × الارتفاع)

حجم طاولة وضع الزجاج: 1500×2200×900 مم طول×عرض×ارتفاع

يمكن لمجموعة متنوعة من الأحجام تلبية احتياجات المعالجة المختلفة للعملاء، يرجى الاتصال بنا للحصول على التفاصيل

    وجه الفتاة...!

    لا توجد بيانات المنتج.

    الذهاب إلى الصفحة الرئيسية
    undefined

    Product Information

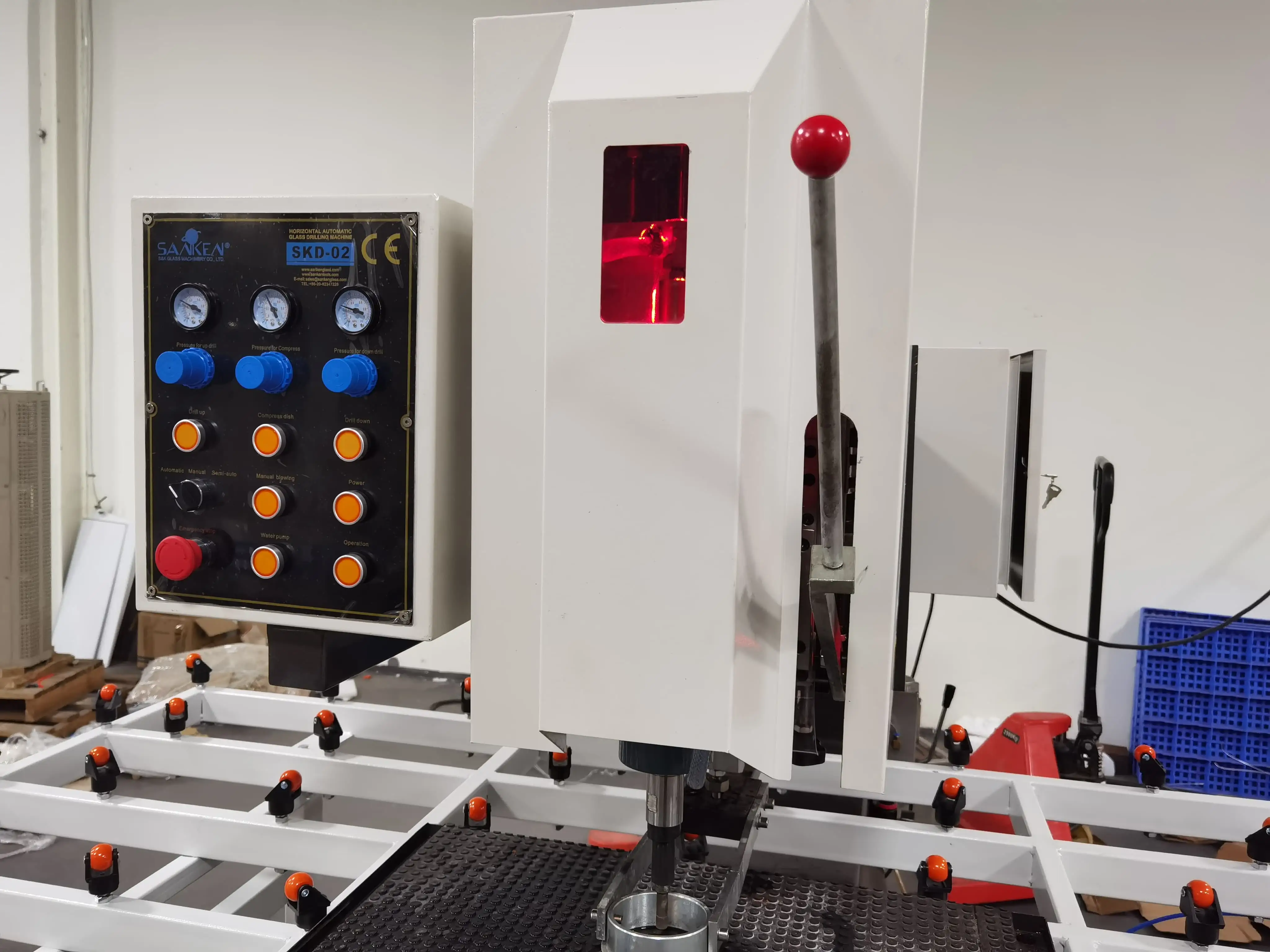

    SKD-02 Horizontal Glass Drilling Machine uses pneumatic glass clamping, infrared positioning to improve accuracy, the upper and lower drill bits drill in succession to greatly reduce the rate of glass damage, the table is pneumatically lifted to suit the height of the glass, the machine is equipped with shelves to facilitate the processing of large pieces of glass, increasing the range of areas that can be processed. Horizontal Glass Drilling Machine combines semi-automatic and automatic control functions, which can be changed freely according to the actual situation, and is easy to operate and can adapt to a variety of processing needs.

    Specification Drawing

    1 (2)
    1 (2)
    1主图 (7)
    1主图 (7)
    大图3 (4)
    大图3 (4)
    小图3 (2)
    小图3 (2)
    小图1 (2)
    小图1 (2)

    Давуу тал

    آلة حفر الزجاج العمودية1 9
    01
    Horizontal Glass Drilling Machine has high precision laser positioning
    آلة حفر الزجاج العمودية1 10
    02
    Horizontal Glass Drilling Machine uses Pneumatic fixing and drilling of the glass with double upper and lower drill bits
    آلة حفر الزجاج العمودية1 11
    03
    Horizontal Glass Drilling Machine is equipped with pneumatic working table to support large size glass
    آلة حفر الزجاج العمودية1 12
    04
    Horizontal Glass Drilling Machine adopts self-controlled sinking, pneumatic glass clamping and hydraulic cushioning technology
    mmexport1582446772577 (3)
    05
    The drilling time and speed of the Horizontal Glass Drilling Machine upper and lower drills can be adjusted at will
    小图1 (2)
    06
    Horizontal Glass Drilling Machine has high efficiency and easy to operate

    Хэрэглээ

    The SKD-02 Horizontal Glass Drilling Machine  can be used for the production of glass types: automotive glass, architectural glass, decorative glass, appliance glass, furniture glass, lighting glass, tempered glass, art glass, etc. The drill can be changed to different diameters according to the requirements of the product to achieve the processing purpose.

    FAQ

    1
    About voltaje
    Voltage can be customized
    2
    GUARANTEE / WARRANTY
    The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.
    3
    About delivery time
    30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.
    4
    About payment terms
    30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
    70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
