غسالة الزجاج العمودية

المواصفات الفنية الرئيسية:

معالجة سمك الزجاج: 3-19 ملم

الحد الأدنى حجم الزجاج المعالج: mm400*400

الأعلى. ارتفاع معالجة الزجاج: mm2500

قوة: 26KW

وزن: أطنان3

منطقة الاحتلال: الطول 7500 × العرض 2500 × الارتفاع 3700 ملم

يمكن لمجموعة متنوعة من الأحجام تلبية احتياجات المعالجة المختلفة للعملاء، يرجى الاتصال بنا للحصول على التفاصيل

    وجه الفتاة...!

    لا توجد بيانات المنتج.

    الذهاب إلى الصفحة الرئيسية
    SKW-2500V

    Taarifa ya Bidhaa

    SANKEN Vertical glass washing machine can be used for insulating glass line or connected with vertical glass processing equipmemnt, such as vertical CNC processing center, vertical drilling machine, vertical sand blasting machine, vertical edging machines etc., or suitable for some factories with limited area. The protective cover and structure framework are installed with stainless steel or other special treatment steel, with a special design for LOW-E glass washing. With three(3) groups of cleaning brush and a speical design for the high pressure air knives system. The transmission system adopts intelligent mechanical stepless speed regulation to achieve high stability and efficiency production. With a unique drying design, it can clean different specifications of common float glass, coated glass and Low-e glass perfectly.

    Specification Drawing

    图片6 (5)
    图片6 (5)

    Faida

    غسالة الزجاج العمودية 10
    01
    The cleaning machine, steel structure and protective cover are all made of high-quality brushed stainless steel. It is divided into three sections: pre-rinsing, cleaning and drying. It consists of a conveyor roller, a cylindrical nylon brush and a drive device, a water spray pipe and a water supply system, a wiper, a wind knife air filter, and a circulating air device.
    غسالة الزجاج العمودية 11
    02
    Four pairs of high-temperature nylon brushes are driven by four asynchronous motors. The four pairs of brushes are cleaned. The high-pressure water nozzle can be disassembled for cleaning, which is easy to maintain.
    03
    The gap spring of the brush roller is automatically adjustable, which is easy to clean glass of different thicknesses and types.
    04

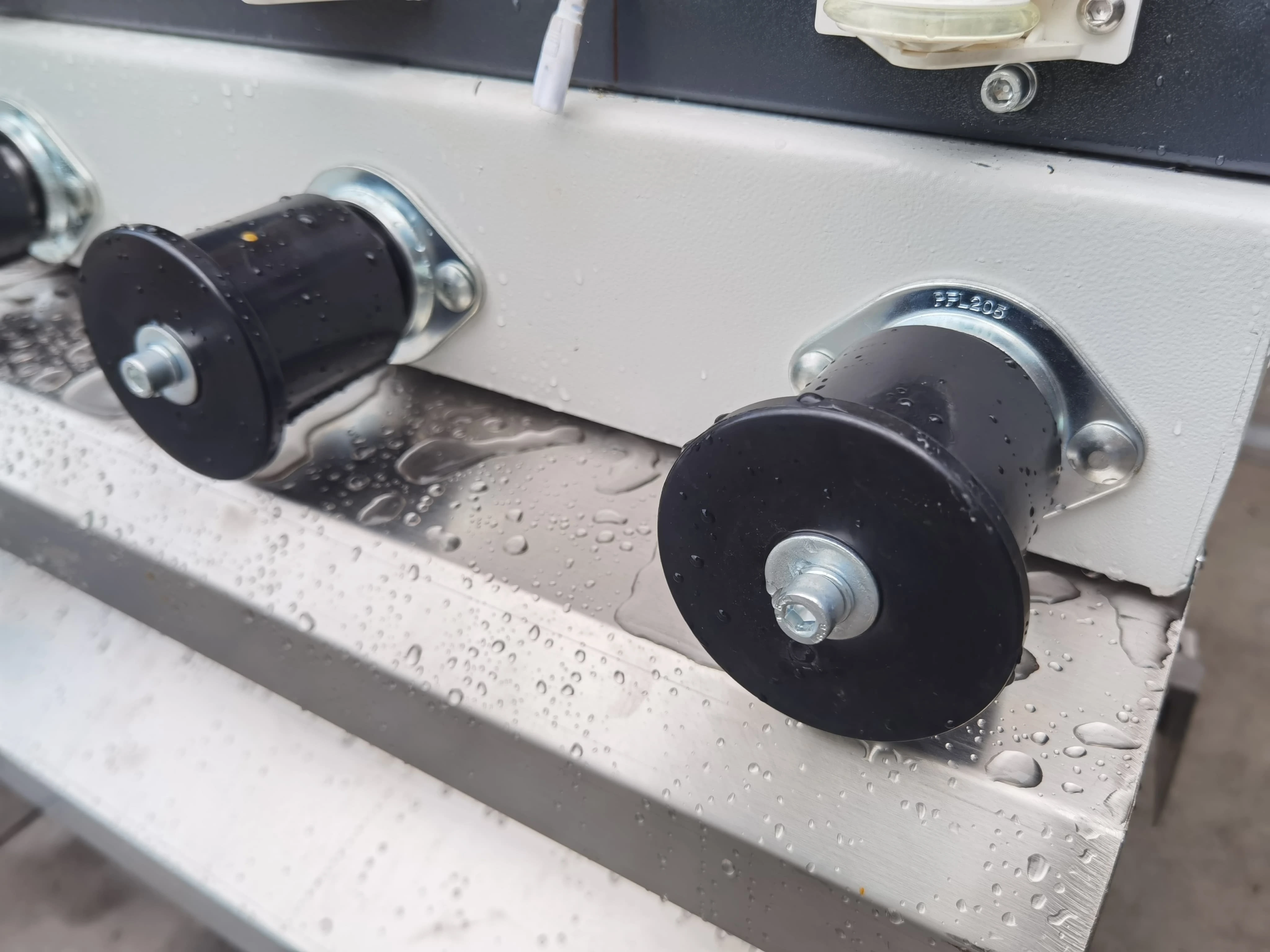

    Automatic tensioning and pressing of the conveyor roller, automatic adjustment for cleaning glass of different thicknesses, oil-free stainless steel waterproof bearings, stainless steel, aluminum or copper are used for the parts in contact with water, and the service life is long; at the end of the cleaning section, there is a soft wiper on the upper and lower sides of the glass, and the glass passes between the two wipers.
    图片6 (5)
    05
    Clean water can be recycled. Three submersible pumps are used for water supply. The water tank has a water heating device to heat the water. Using water at a temperature of about 50°C to clean the glass will have a better effect.
    e8538bbc60b5f81dd00a7782728298f
    06
    The unique wind knife design uses a pair of stainless steel inclined wind knives made by CNC bending technology to form high-pressure wind filtration. The pressurized air is connected to the wind knife mouth through a hose. The dry air blows from the wind knife mouth to the glass piece at an optimal angle to clean it, and the drying effect is good.
    SKW-2500V
    07
    The fan adopts a circulating wind device with heating function and circulating wind design.
    微信图片_20220715175442
    08
    The cleaning adopts oil-free lubricated stainless steel waterproof bearings to avoid secondary pollution of water sources and eliminate the possibility of floating oil molecules when the glass passes through the strong wind pressure drying area (the glass surface will produce bright spots when it encounters natural light after the oil molecules adhere to the surface).

    Maombi

    Glass curtain walls, glass windows, glass doors, glass fences, glass partition walls, glass display cabinets, kitchen glass, shower glass, aquarium glass, furniture glass, appliance glass (TV, refrigerator, microwave oven, washing machine, etc.), decorative glass, craft glass, automotive glass, photovoltaic glass, etc.

    Scenarios

    All buildings, such as houses, restaurants, hotels, office buildings, schools, hospitals, banks, stations, public facilities, supermarkets, shops, etc., as well as the furniture industry, the home appliance industry, the automotive industry, the photovoltaic glass industry, etc.

    FAQ

    1
    About voltaje
    Voltage can be customized
    2
    GUARANTEE / WARRANTY
    The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.
    3
    About delivery time
    30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.
    4
    About payment terms
    30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
    70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
