Con más de 23 años de experiencia en servicio, un proveedor global de maquinaria profesional de procesamiento de vidrio.

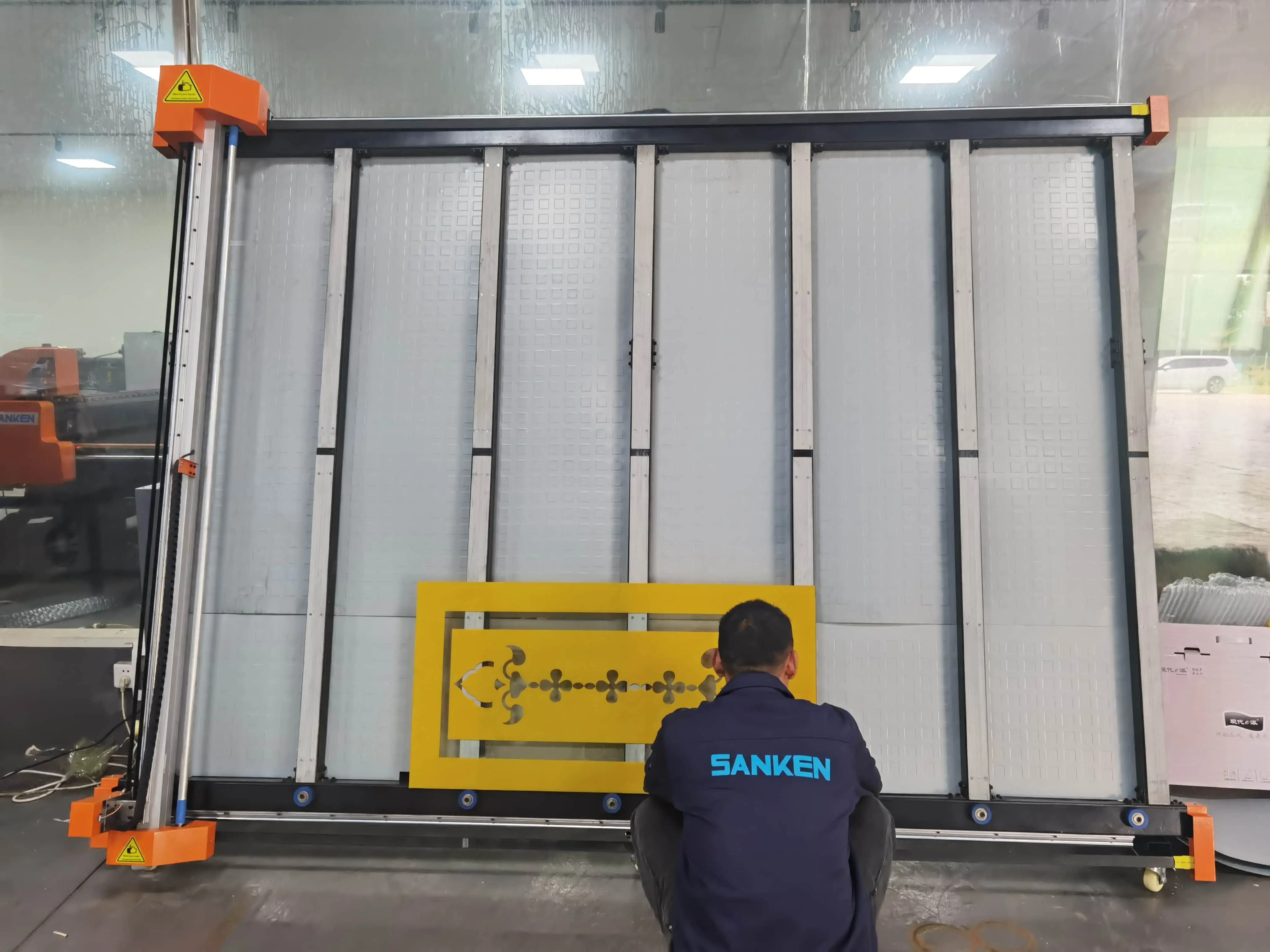

Máquina de corte plotter

MAIN SPECIFICATION

◆ Dimensión de la máquina: 2800 x 2400 x 1000mm

◆ Máx. Tamaño del corte: 2440 x 1830mm

◆ Sistema transportador: Órbita Beeline

◆ Conductor: Controlador de micropasos, motor paso a paso y CC digital.

◆ Máx. Velocidad de corte: 20 m/1 minuto

◆ Máx. Espesor de los materiales: 40mm

◆ Precisión mecánica: 0.1mm

◆ Precisión de repetición: 0.1mm

◆ Fuerza: 1KW, 220 V / 60 Hz

◆ Peso: 320KGS

◆ Correa sincrónica

Una variedad de tamaños pueden satisfacer las diferentes necesidades de procesamiento de los clientes, contáctenos para obtener más detalles.

consulta

Escribe una reseña

ព័ត៌មាន លុប

Paste the plastic film on the glass, send the designed text or various exquisite images such as figures, flowers, grass, trees, etc. to the plotter through the computer, and complete the process of drawing and knife cutting on the glass film. This plotter is very suitable for the glass pattern crafting with sandblasting.

Specification Drawing

SKDC-1824V

图片1 (14)

Преимущество

Unique knife drop design, the knife output force can be adjusted directly during operation without stopping, and can be engraved on uneven tempered glass

The origin can be set arbitrarily with automatic memory, automatic return to the origin, high-quality dual navigation, to ensure the durability of the machine

High-performance drive uses imported integrated circuits to improve the engraving accuracy and speed, ensuring smooth curves

The vertical slope design makes glass loading and unloading safer and faster. During the engraving process, you can pause, emergency stop, increase or decrease the speed at any time

Processable glass size/mm (4 models): 1000×2440 1220×2440 1830×2440 1830×3300

Приложения

Smart mirror glass, craft glass.

FAQ

About voltaje

Voltage can be customized

GUARANTEE / WARRANTY

The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.

About delivery time

30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.

About payment terms

30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
