Con más de 23 años de experiencia en servicio, un proveedor global de maquinaria profesional de procesamiento de vidrio.

Lavadora de vidrio vertical

Especificaciones técnicas principales:

◆ Procesamiento del espesor del vidrio: 3-19 mm

◆ Mín. Tamaño del vidrio procesado: 400*400mm

◆ Máx. Altura de procesamiento del vidrio: 2500mm

◆ Fuerza: 26KW

◆ Peso: 3 montones

◆ Área de Ocupación: Largo 7500 x Ancho 2500 x Alto 3700 mm

Una variedad de tamaños pueden satisfacer las diferentes necesidades de procesamiento de los clientes, contáctenos para obtener más detalles.

consulta

Escribe una reseña

Información del producto

SANKEN Vertical glass washing machine can be used for insulating glass line or connected with vertical glass processing equipmemnt, such as vertical CNC processing center, vertical drilling machine, vertical sand blasting machine, vertical edging machines etc., or suitable for some factories with limited area. The protective cover and structure framework are installed with stainless steel or other special treatment steel, with a special design for LOW-E glass washing. With three(3) groups of cleaning brush and a speical design for the high pressure air knives system. The transmission system adopts intelligent mechanical stepless speed regulation to achieve high stability and efficiency production. With a unique drying design, it can clean different specifications of common float glass, coated glass and Low-e glass perfectly.

Specification Drawing

图片6 (5)



Ventaja

The cleaning machine, steel structure and protective cover are all made of high-quality brushed stainless steel. It is divided into three sections: pre-rinsing, cleaning and drying. It consists of a conveyor roller, a cylindrical nylon brush and a drive device, a water spray pipe and a water supply system, a wiper, a wind knife air filter, and a circulating air device.

Four pairs of high-temperature nylon brushes are driven by four asynchronous motors. The four pairs of brushes are cleaned. The high-pressure water nozzle can be disassembled for cleaning, which is easy to maintain.

The gap spring of the brush roller is automatically adjustable, which is easy to clean glass of different thicknesses and types.

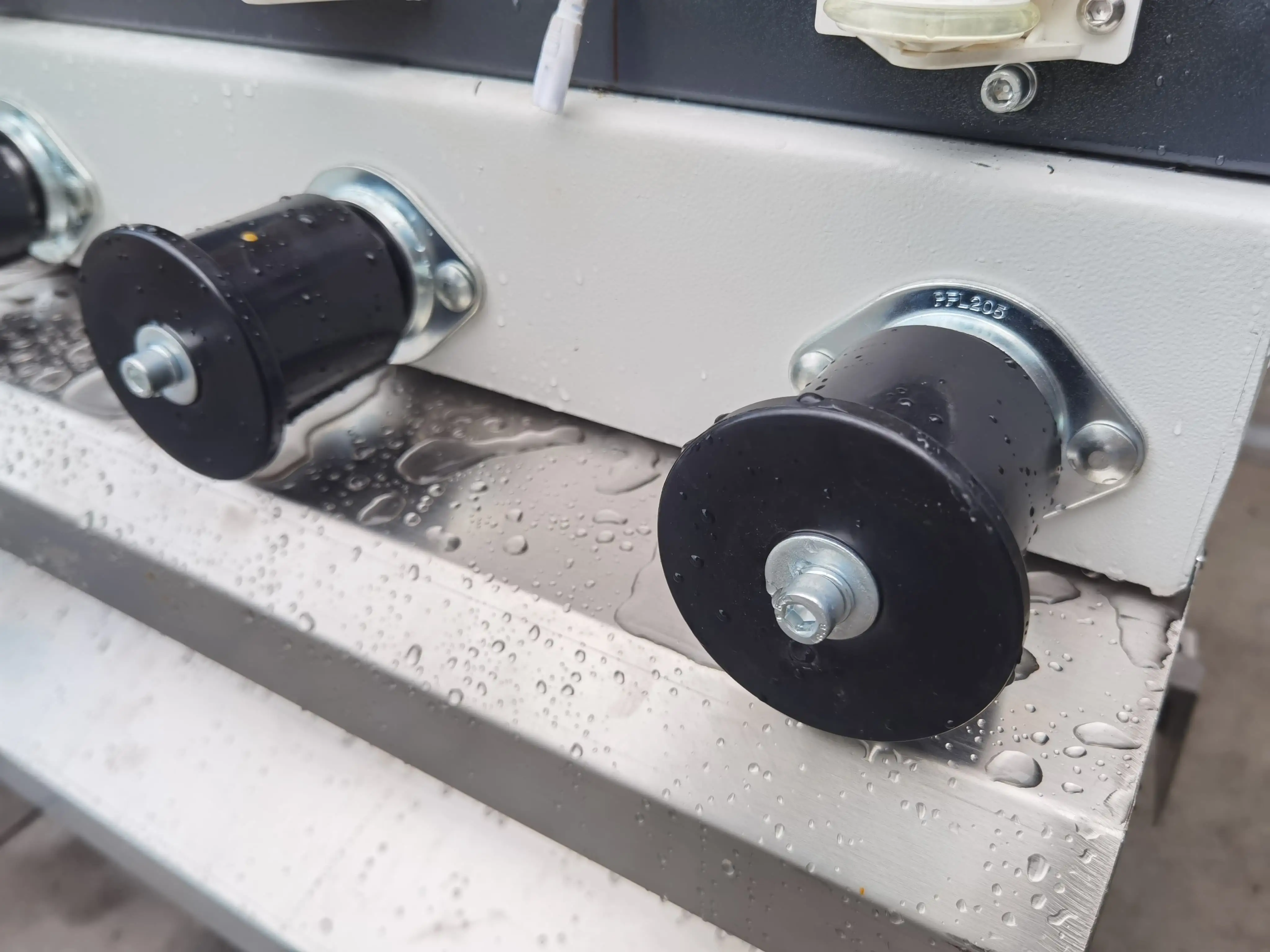

Automatic tensioning and pressing of the conveyor roller, automatic adjustment for cleaning glass of different thicknesses, oil-free stainless steel waterproof bearings, stainless steel, aluminum or copper are used for the parts in contact with water, and the service life is long; at the end of the cleaning section, there is a soft wiper on the upper and lower sides of the glass, and the glass passes between the two wipers.

Clean water can be recycled. Three submersible pumps are used for water supply. The water tank has a water heating device to heat the water. Using water at a temperature of about 50°C to clean the glass will have a better effect.

The unique wind knife design uses a pair of stainless steel inclined wind knives made by CNC bending technology to form high-pressure wind filtration. The pressurized air is connected to the wind knife mouth through a hose. The dry air blows from the wind knife mouth to the glass piece at an optimal angle to clean it, and the drying effect is good.

The fan adopts a circulating wind device with heating function and circulating wind design.

The cleaning adopts oil-free lubricated stainless steel waterproof bearings to avoid secondary pollution of water sources and eliminate the possibility of floating oil molecules when the glass passes through the strong wind pressure drying area (the glass surface will produce bright spots when it encounters natural light after the oil molecules adhere to the surface).

Aplicaciones

Glass curtain walls, glass windows, glass doors, glass fences, glass partition walls, glass display cabinets, kitchen glass, shower glass, aquarium glass, furniture glass, appliance glass (TV, refrigerator, microwave oven, washing machine, etc.), decorative glass, craft glass, automotive glass, photovoltaic glass, etc.

Scenarios

All buildings, such as houses, restaurants, hotels, office buildings, schools, hospitals, banks, stations, public facilities, supermarkets, shops, etc., as well as the furniture industry, the home appliance industry, the automotive industry, the photovoltaic glass industry, etc.

FAQ

About voltaje

Voltage can be customized

GUARANTEE / WARRANTY

The quality guarantee period for one year, any damages on the electric parts during the quality gaurantee period can be maintained or replaced free, (Except in the course of usage, damage due to human errors), and after guarantee period, SANKEN will continuously give good support and best after-sales service to customer.

About delivery time

30 WORKING DAYS AFTER RECEIVING 30% ADVANCE PAYMENT.

About payment terms

30% SHALL BE PAID BY T/T AS DOWN PAYMENT IN ADVANCE;
70% BALANCE SHALL BE PAID OFF BY T/T BEFORE SHIPMENT.
